# Twilio WhatsApp Integration

By integrating Twilio WhatsApp API, the platform allows your bot to respond to WhatsApp messages directly, and automate customer care, sales, support, and other business functions.

## Prerequisites

For the Twilio WhatsApp API Provider, we will need

* An Account SID
* Auth Token
* A WhatsApp-enabled Number

When a user sends a message to your WhatsApp Enabled Number, your BotDistrikt bot will reply to them

### Create a Twilio Account

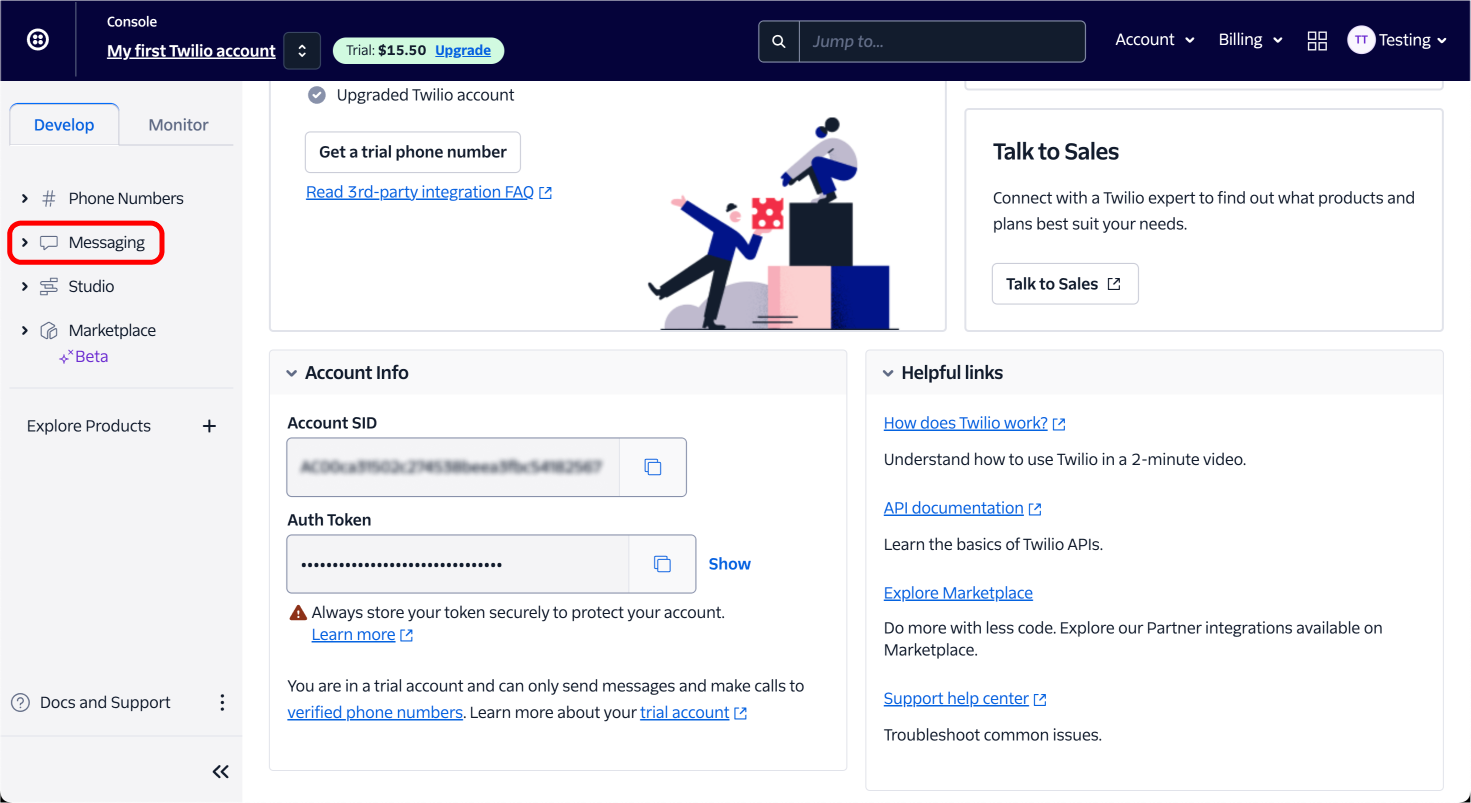

You can set up a new Twilio Account [here](https://www.twilio.com/try-twilio). After logging in for the first time and setting up your details, you will be taken to the Dashboard page.

You will get your Account SID and the Auth Token from this page

{% hint style="success" %}
New accounts come with $15 worth of credits, which you can use to purchase a phone number
{% endhint %}

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2FijoH5lIbsD49mxezWtA3%2F1%20-%20Twilio.png?alt=media&#x26;token=ec7242a4-3376-43e7-aba5-5671e18d12cc" alt=""><figcaption><p>Twilio Console </p></figcaption></figure>

### Enable the WhatsApp Sandbox

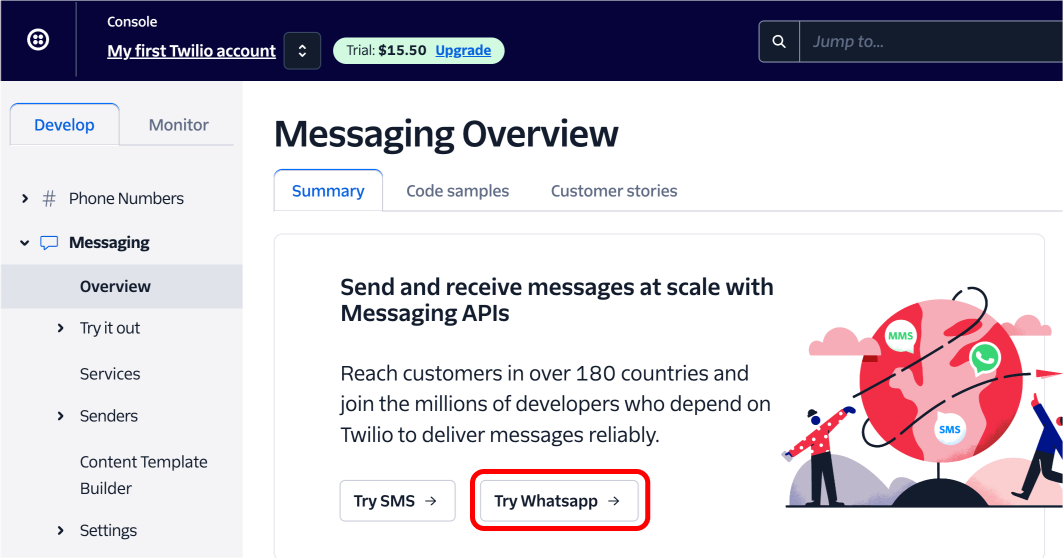

Click on the **Messaging** tab and click on **Overview > Try WhatsApp**

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2FMxiip3WQiXAqO1peetk6%2F2%20-%20Twilio.png?alt=media&#x26;token=ca5b5eca-8201-4793-bd60-3d56e8cc5ee4" alt=""><figcaption><p>Twilio WhatsApp Sandbox</p></figcaption></figure>

Follow the instructions on this page

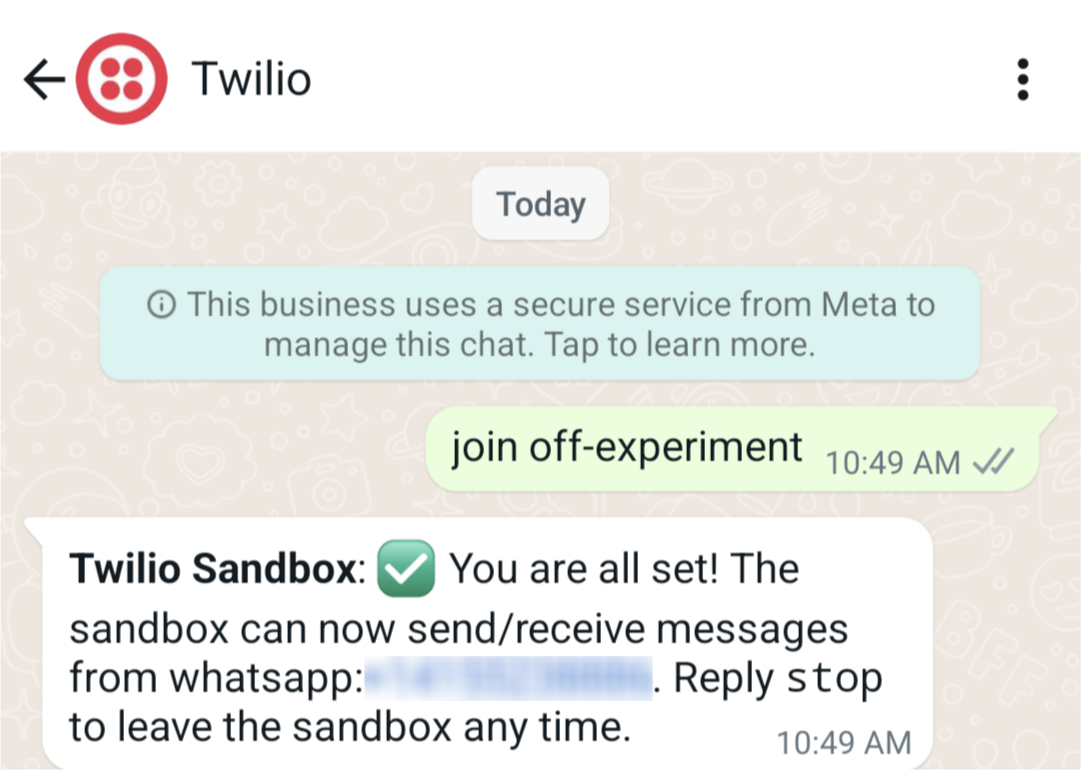

When your device is connected to the Sandbox, you will receive this message

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2FHqVblxBmaZGiIGYoBASY%2F5%20-%20Twilio.png?alt=media&#x26;token=a84de110-c333-455d-8cfb-3fe4c86cf660" alt="" width="375"><figcaption></figcaption></figure>

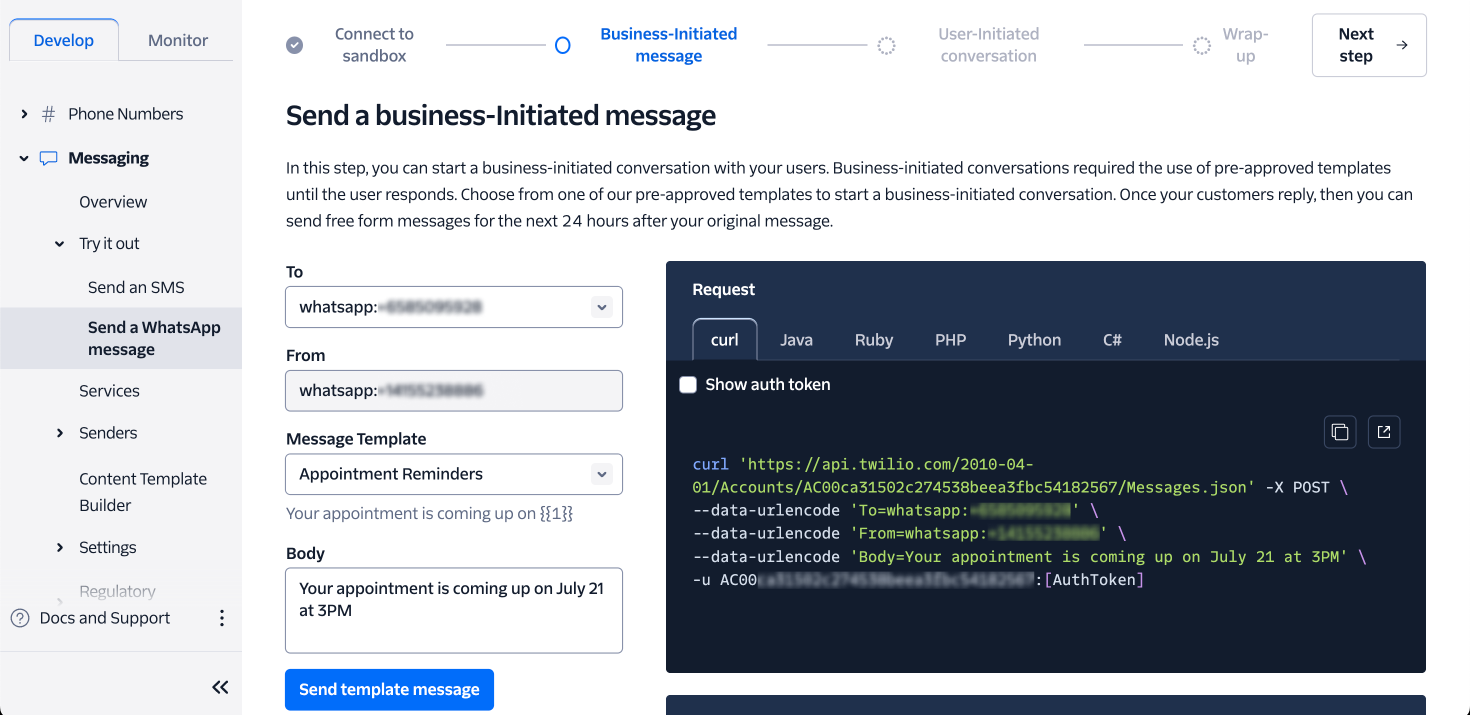

After you have successfully completed the above steps, return to the **Twilio  Messaging  > Try WhatsApp**. You will see this step.

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2FY4vNXazeOY3kmm3v2bmY%2F6%20-%20Twilio.png?alt=media&#x26;token=b8b42fe6-ab89-413d-a175-0764c75de090" alt=""><figcaption></figcaption></figure>

You are now ready to setup the Twilio WhatsApp API Provider on your BotDistrikt WhatsApp channel

## Setup

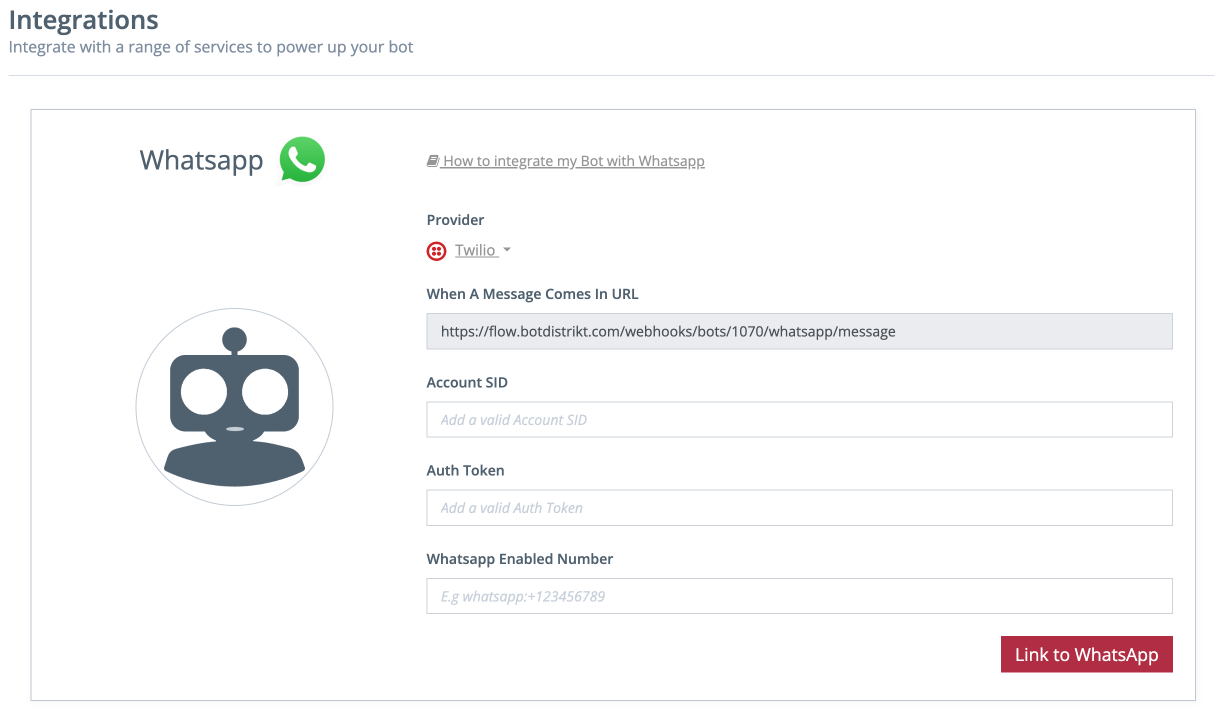

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2F7XDmNfJkr0K5RgrVF3Db%2F7%20-%20Twilio.png?alt=media&#x26;token=93022468-00b1-4562-981d-b13bb72f579a" alt=""><figcaption><p>BotDistrikt WhatsApp Integration</p></figcaption></figure>

We have our Account SID and Auth Token ready. We need to get the WhatsApp Enabled Number ready now.

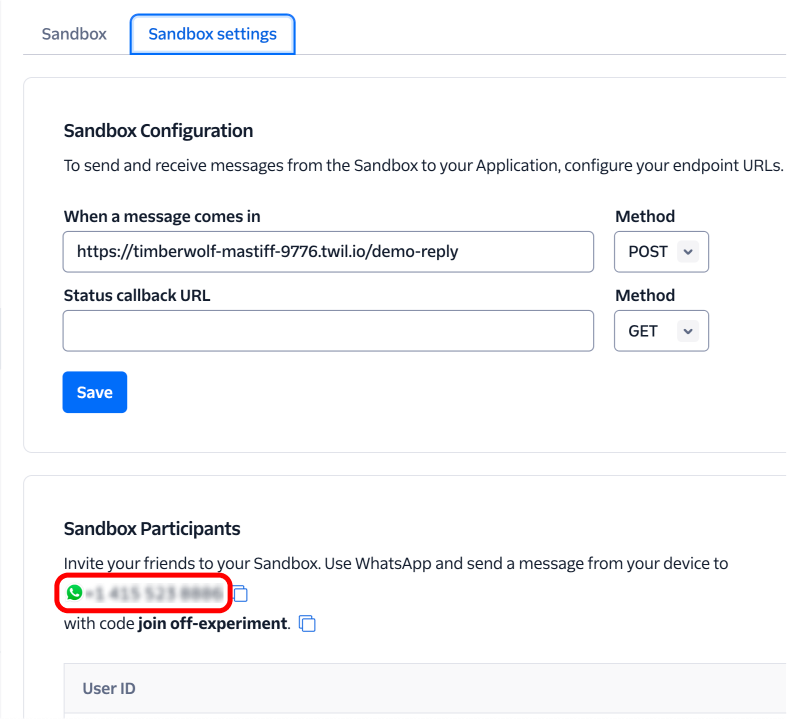

On Twilio, click **Sandbox Settings** to get your WhatsApp Enabled Number.

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2FGVkXNYhl0TGNLrA3vR8L%2F8%20-%20Twilio.png?alt=media&#x26;token=03a54c3f-474f-4b71-8773-786d75e09380" alt=""><figcaption></figcaption></figure>

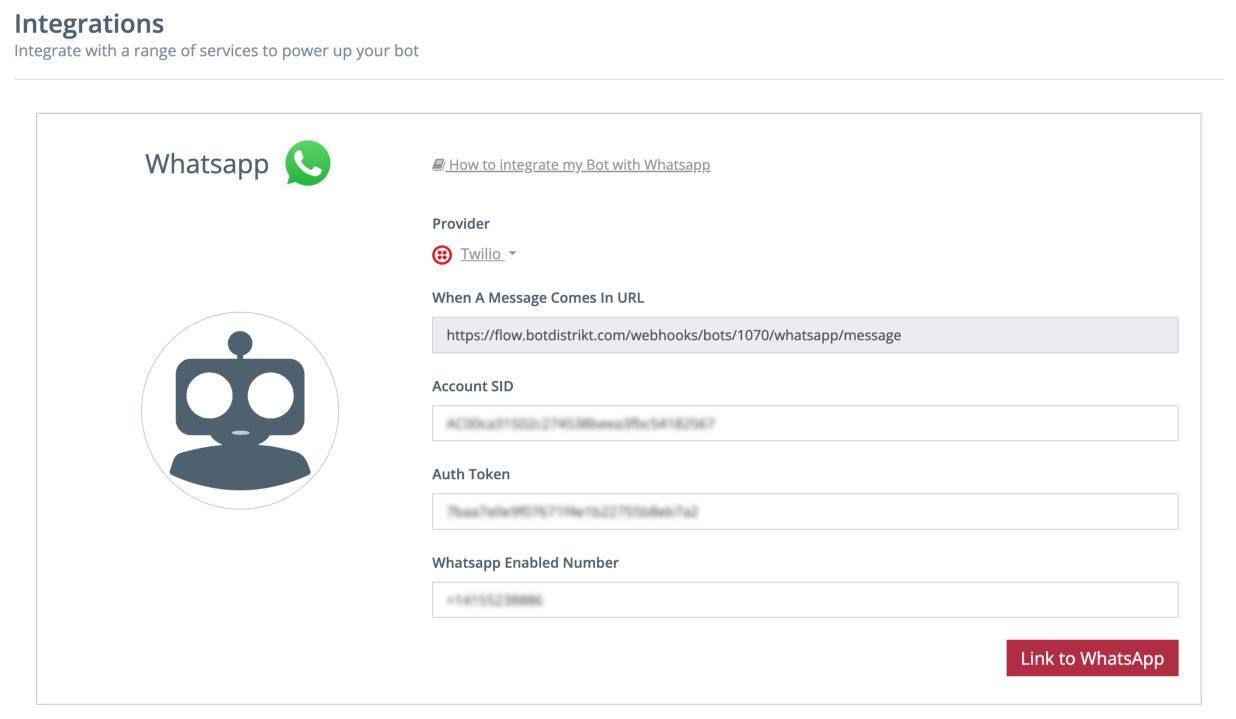

On BotDistrikt, fill in all 3 fields:

* An Account SID&#x20;
* Auth Token
* A WhatsApp Enabled Number

{% hint style="info" %}
For the WhatsApp Enabled number, make sure to remove the white spaces and add a **whatsapp:** prefix.&#x20;

For example, if the number you copy from Twilio is `+1 415 523 8886`, The number you will need to key into BotDistrikt is `whatsapp:+14155238886`&#x20;
{% endhint %}

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2FWhJdZBbmgU03bgMb4a8Z%2F9%20-%20Twilio.png?alt=media&#x26;token=8e953eda-c789-4d58-9988-d6b9200f828b" alt=""><figcaption></figcaption></figure>

Click **Link to WhatsApp**

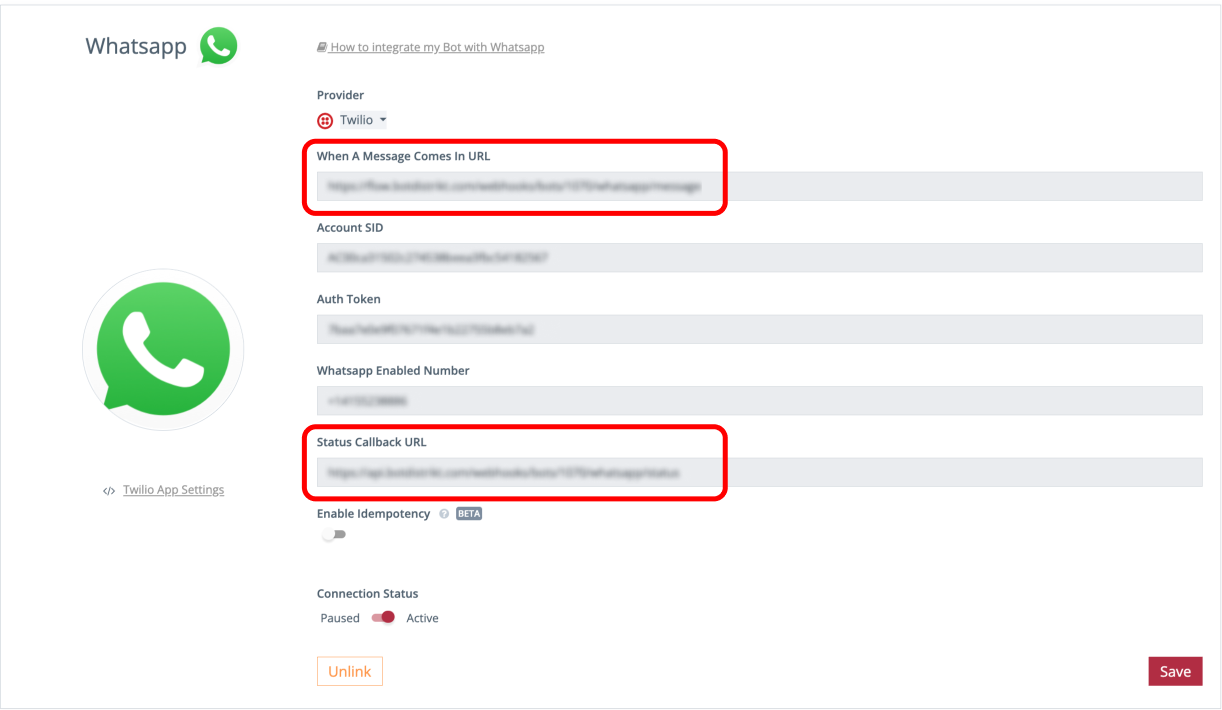

When it is linked, take note of the **When A Message Comes In** and **Status Callback** endpoint URLs

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2FuFlVKqTzZex94sxa8Ate%2F10%20-%20Twilio.png?alt=media&#x26;token=42fc5ca9-633f-4370-95c6-7ef50bf11599" alt=""><figcaption></figcaption></figure>

Go Back to **Twilio**&#x20;

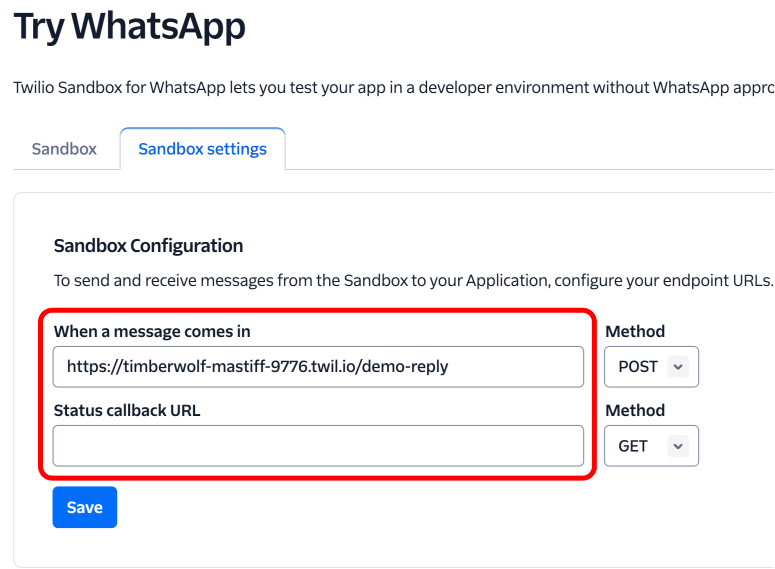

Click **Settings > WhatsApp Sandbox Settings** and paste the respective endpoint URLs there

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2Fhsm2e2zobSfmyI0h6vsX%2F11%20-%20Twilio.png?alt=media&#x26;token=3d371995-6789-49f0-8439-903b7ed0be3c" alt=""><figcaption></figcaption></figure>

Click **Save** on Twilio

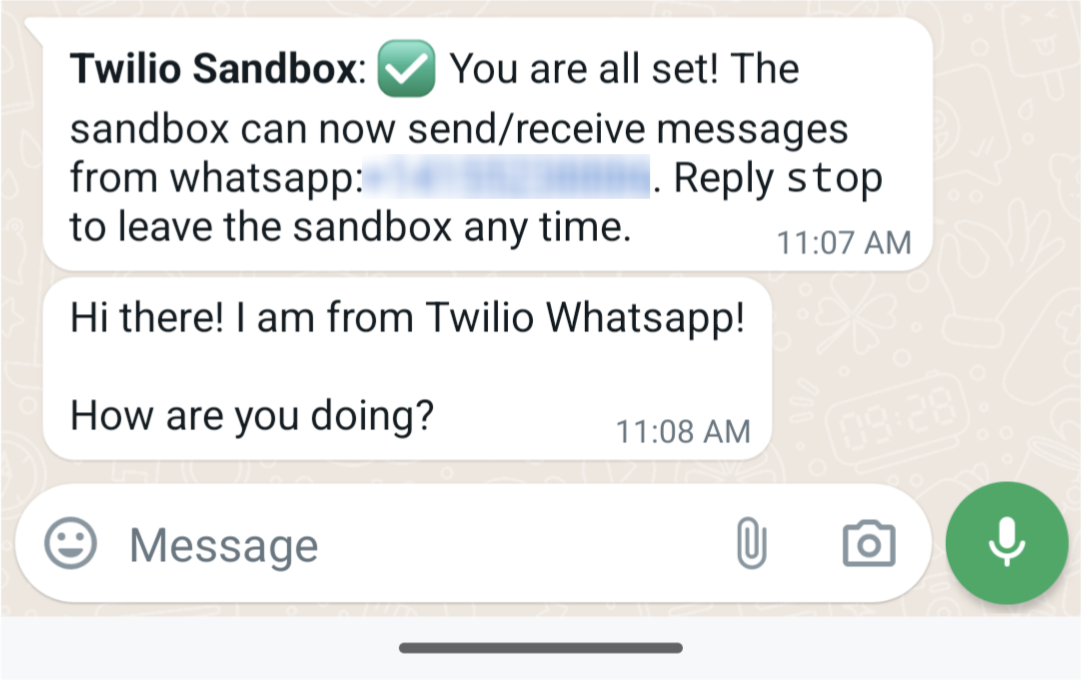

Your BotDistrikt bot is now connected to WhatsApp through Twilio!

<figure><img src="https://2535542804-files.gitbook.io/~/files/v0/b/gitbook-x-prod.appspot.com/o/spaces%2F-LirAdLo22OkAW9w3tvY%2Fuploads%2FRYNRqfcN7RXc4GBZsxQH%2F12%20-%20Twilio.png?alt=media&#x26;token=8755840f-0c7a-40d5-825c-5c356ffd76b5" alt="" width="375"><figcaption><p>Whatsapp Chatbot Connected</p></figcaption></figure>
